Why Electricity Is Transmitted at High Voltage — and How the Right Accessories Keep It Safe

Electricity travels across vast distances before reaching our homes and industries.

At every stage — from generation to distribution — engineers must balance efficiency, safety, and reliability.

That’s why we transmit power at very high voltages (132 kV, 220 kV, 400 kV, or even 765 kV).

High voltage means lower current, and lower current means less energy lost as heat in the transmission lines.

In short:

Longer distance → Higher voltage → Lower current → Lower losses → Better efficiency ⚡️

But high voltage also introduces new challenges — mechanical stress, earthing safety, and fault management.

This is where engineering-grade accessories like cable cleats, earth link boxes, and now smart link boxes come into play.

Cable Cleats — The First Line of Physical Safety

When high-voltage cables carry heavy currents or experience short-circuit faults, they are subjected to enormous electromagnetic forces.

Cable cleats secure and restrain these cables, preventing dangerous movement and mechanical damage.

They ensure:

1. Proper mechanical restraint during faults
2. Phase separation and alignment in trefoil or flat formations
3. Compliance with IEC 61914 mechanical test standards
4. Operational safety in substations, tunnels, and power corridors

At Peace Power, our cleat systems are tested to withstand dynamic fault forces, ensuring long-term cable stability and protection.

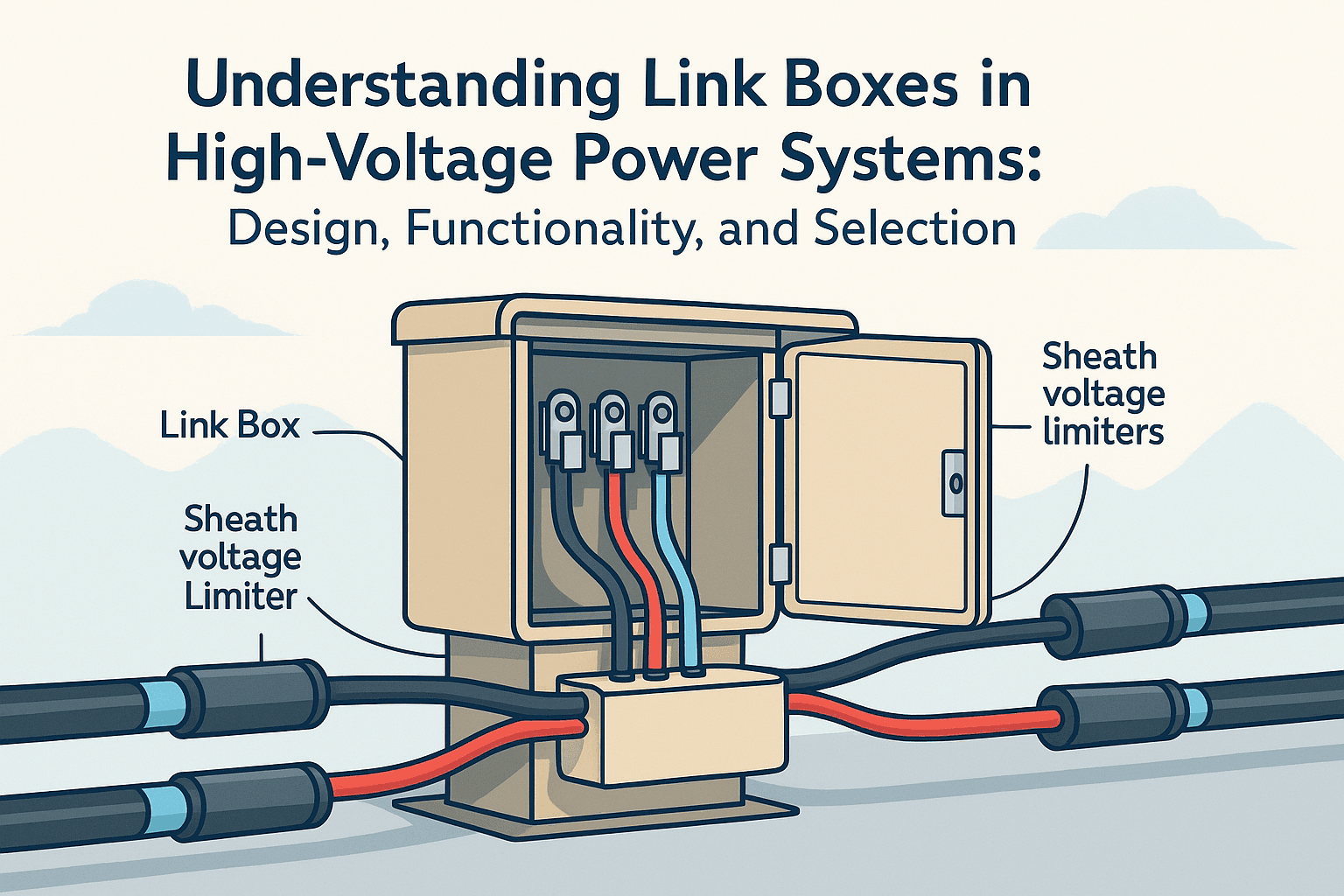

Earth Link Boxes — Controlled Earthing and Testing

Every transmission system needs a safe and maintainable earthing interface between the cable sheath and the ground grid.

Earth Link Boxes (ELBs) provide that link.

They:

1. Offer a testing point for sheath continuity and sheath voltage limiters (SVLs)
2. Allow safe isolation during maintenance or high-voltage testing
3. Protect equipment and personnel from induced or transient voltages

In essence, ELBs keep the high-voltage system grounded, predictable, and serviceable.

Smart Link Boxes — Intelligence Meets Infrastructure

Modern power networks are evolving — and so are their protection systems.

Smart Link Boxes (SLBs) build upon traditional ELBs by integrating sensing, communication, and diagnostics capabilities.

They feature:

1. Real-time monitoring of sheath voltage, current, and temperature
2. Embedded sensors for partial discharge detection or insulation health
3. Remote communication via SCADA, IoT, or fiber links
4. Predictive alerts that enable proactive maintenance

In underground EHV (Extra High Voltage) cable systems, SLBs act as a digital interface between the physical cable and the smart grid — enabling utilities to visualize and optimize performance 24×7.

Did You Know?

1. India’s 400 kV transmission corridors, such as those connecting Raipur–Wardha–Aurangabad, rely on high-voltage accessories to manage sheath voltages and fault currents safely.
2. Metro systems in Delhi, Mumbai, and Nagpur use underground 33 kV–66 kV cable networks, where properly cleated and earthed cables ensure safety in congested tunnels.
3. In refineries, ports, and solar parks, smart link boxes are now being deployed to monitor sheath integrity remotely, reducing manual inspections and downtime.
4. Utilities across Asia and the Middle East are integrating smart earthing systems to align with digital substation standards (IEC 61850).

Engineering Efficiency Meets Safety

Together, cable cleats, earth link boxes, and smart link boxes form a comprehensive ecosystem that supports:

1. Efficient power delivery
2. Enhanced operational safety
3. Predictive maintenance
4. System reliability and uptime

At Peace Power Pvt. Ltd., our engineered range of cleats, clamps, earthing systems, and smart accessories bridges traditional engineering with modern intelligence — delivering safety, reliability, and digital readiness to every link in the transmission chain.
